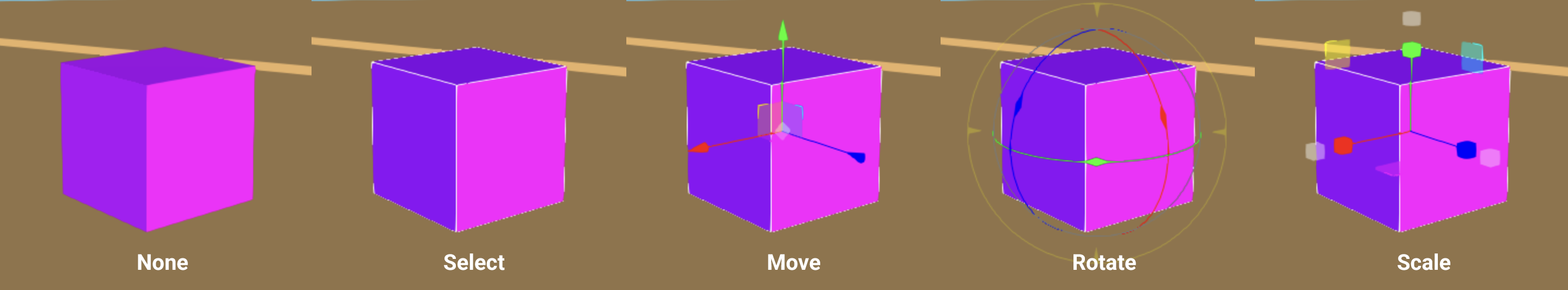

The Tools in the Admin Toolbar let you manually adjust every image and object you bring into Vatom Spaces.
Each tool has its own Gizmo to control the attribute in 3D Space.
Select
The Select tool selects an object. Use Select with the Scene Editor open to select objects and edit properties with a single click. When selected, the object's border is outlined.
Move
Move objects around your scene using the Move Tool.
Using the outer Green, Blue and Red handles, move the object in a single direction.
Using the inner Teal, Yellow and Magenta Square Handles, move the object manually along two axes without moving it on the third. For example dragging the Magenta handle can object around the space without moving it off the floor.

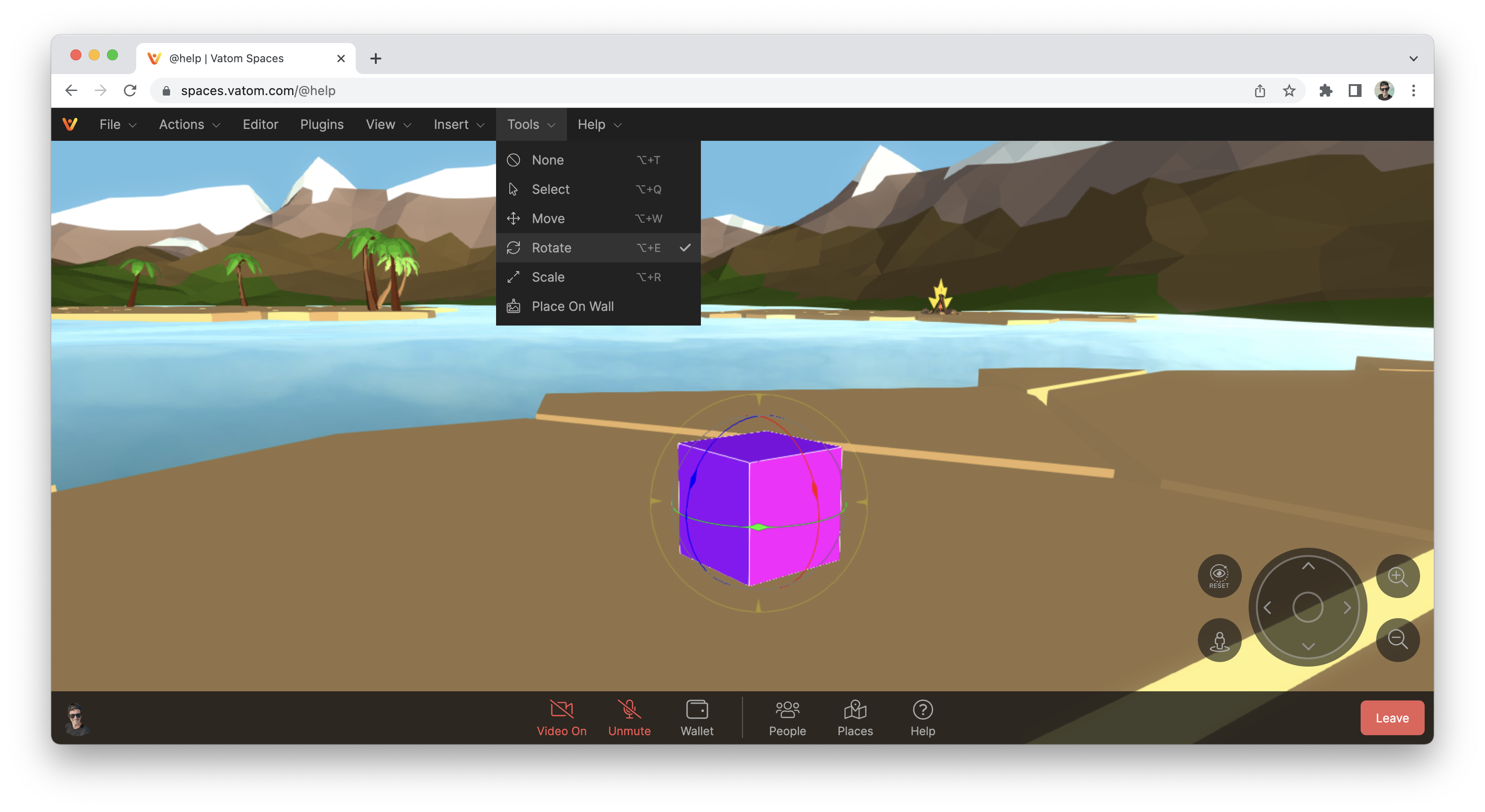

Rotate
Rotate objects using the Rotate Tool.
Using the outer Green, Blue and Red handles, rotate the object in a single direction.
Using the Yellow handle, rotate the object according to the current viewing angle.
Scale / Re-size
Scale or resize objects in your scene using the Scale Tool.
Using the outer Green, Blue and Red handles, re-size the object in a single direction.
Using the inner Teal, Yellow and Magenta Square Handles, scale the object manually along two axes without scaling it on the third.
Place on Wall
Use the Place on Wall tool to manually drag an object onto a wall or plane. Select the object, and then click and drag onto a wall or any plane.
